Pool Cross Section Drawing

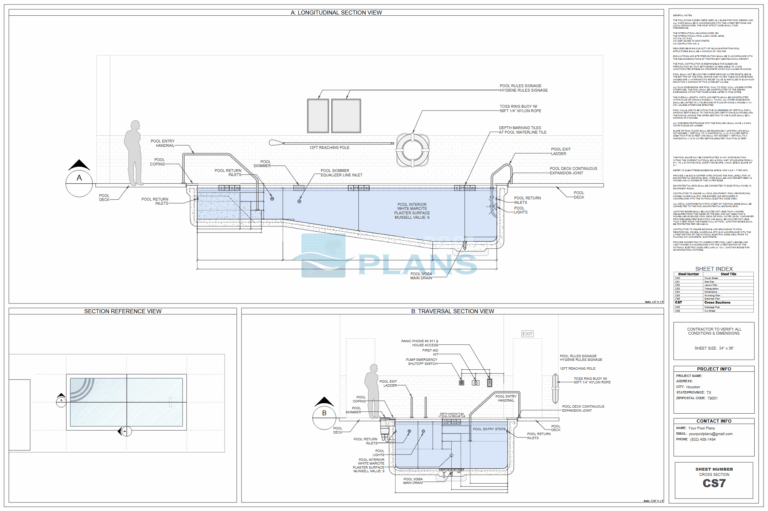

Cross section drawings of swimming pool showing structural detail and components as it pertains to the requirements of your building department.
If you require a cross section drawing for your swimming pool design this needs to be added to your pool construction plans order. Not all building departments require a cross section drawing for submitting pool plans, and that is why this is a separate service we offer if you need it. Please check with your building department to see if this is required or if you would just like to have it anyway.
- 1 Scaled pool cross section drawing*
ATTENTION
- Not included with a standard set of construction sheets.
- *This cost can vary depending on the overall complexity of the design.
- Must be purchased along with a pool construction plan set.
