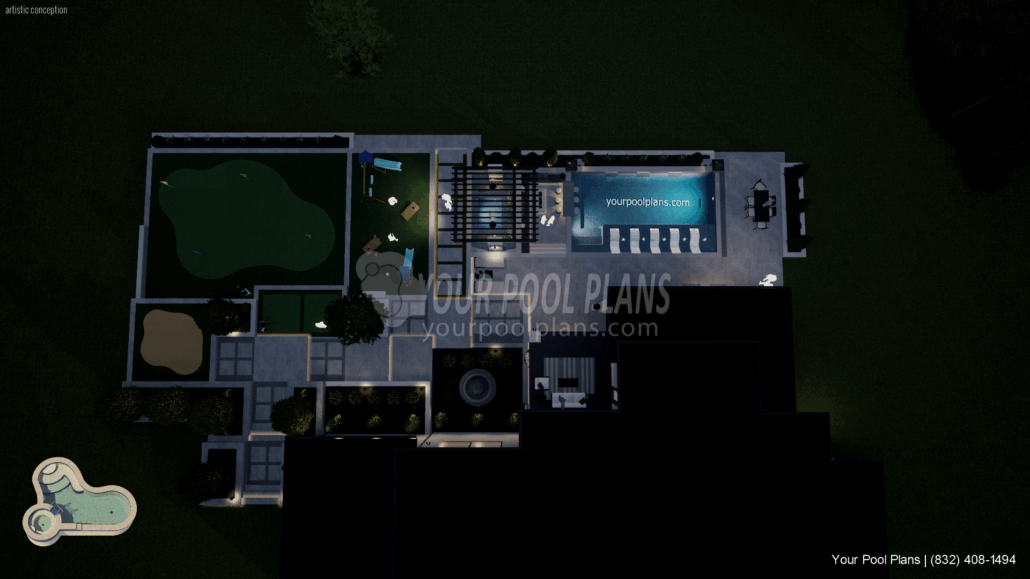

This SC pool design plan is an expansive design on a lot with a slope. The spa is separated from the pool with an infinity spillway into a trough and covered by a modern trellis shade structure. The main pool features an automatic pool cover, a raised beam with fire bowl columns and adjacent to a sunk in ground fire pit seating area. Other aspects of this pool design include a turfed play area, golf putting green with a sand bunker and custom multi-level hardscape pathways all accented with a modern style including low voltage LED lighting throughout.
Pool Design Details
Pool Type: Gunite
Pool Style: Modern Geometric
Spa: Yes, separated with infinity spillway, raised 16″
Spa Height: Infinity Spa spillway
Spa Spillway: Spillway on all sides, minimal
Pool Length: 32′
Pool Width: 18′
Pool Wall: Yes, raised beam with fire bowl columns
Depth Profile: Gradual slope to deep end
Min Pool Depth: 3.5′
Max Pool Depth: 6′
Perimeter: 174′
Surface area: 576 sqft
Capacity: 12,993 gallons
Decking max sqft: 2,557 sqft
How many lights: 6
Sun ledge: Yes, large shallow ledge area
Other Water features: Cascade bubblers
Brand of equipment: Pentair
Type of sanitation: Chlorine, Salt System
Include heater: Yes
Design Materials
Waterline tiles: 6×6 Ceramic pool tile, 1×1 Mosaic spa tile, Precision panel ledge stone
Interior surface: Pebble with glass bead
Coping material: 2CM Natural Stone, square edge
Decking material: Concrete capped with thin travertine tile pavers
Vertical Faces materials: Ledge Stone, Large travertine tile, Split Face, Stucco
