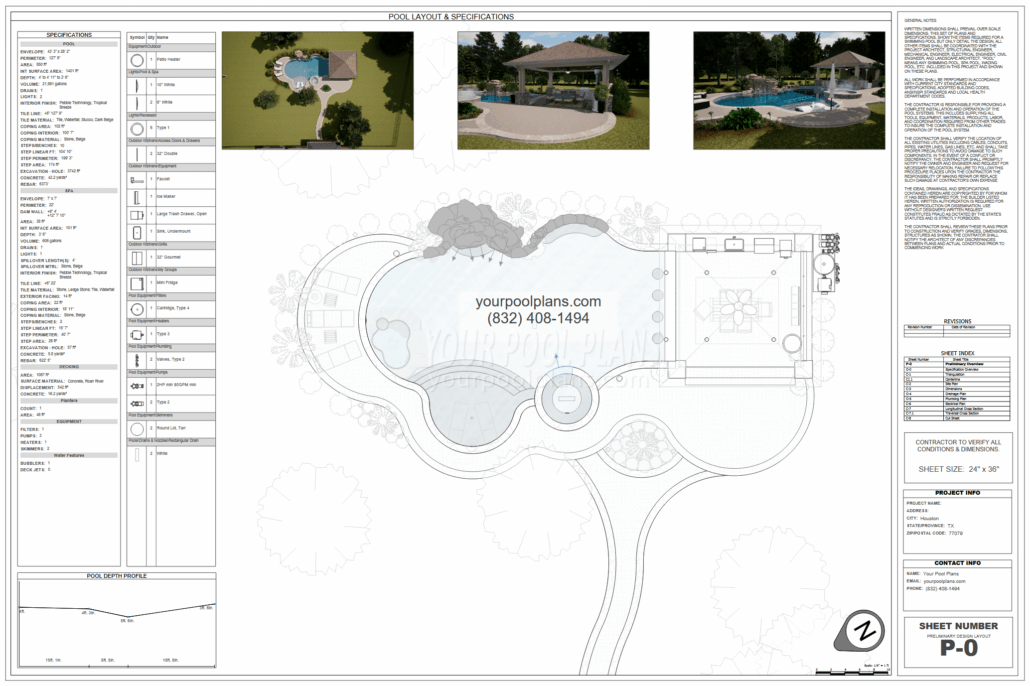

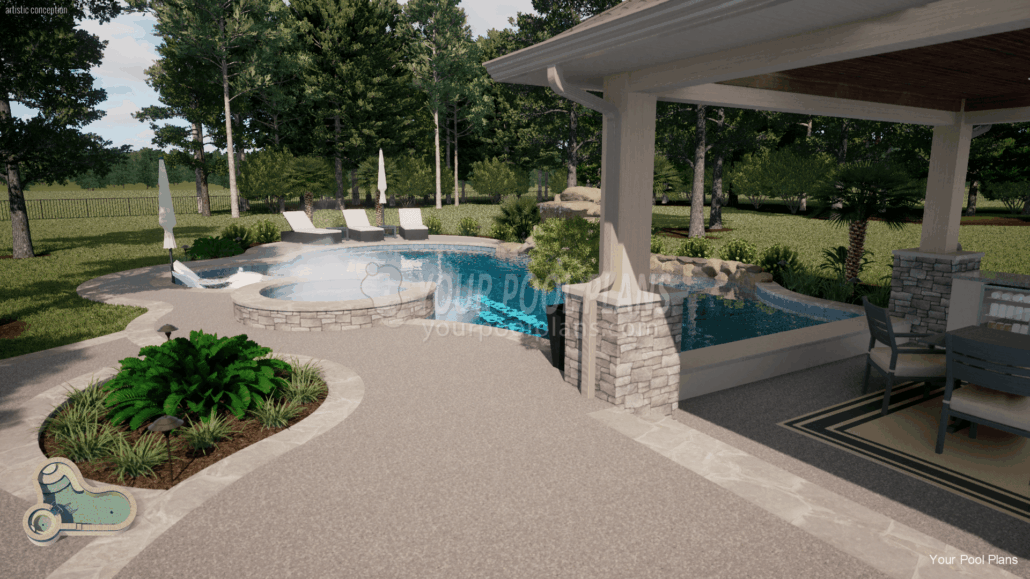

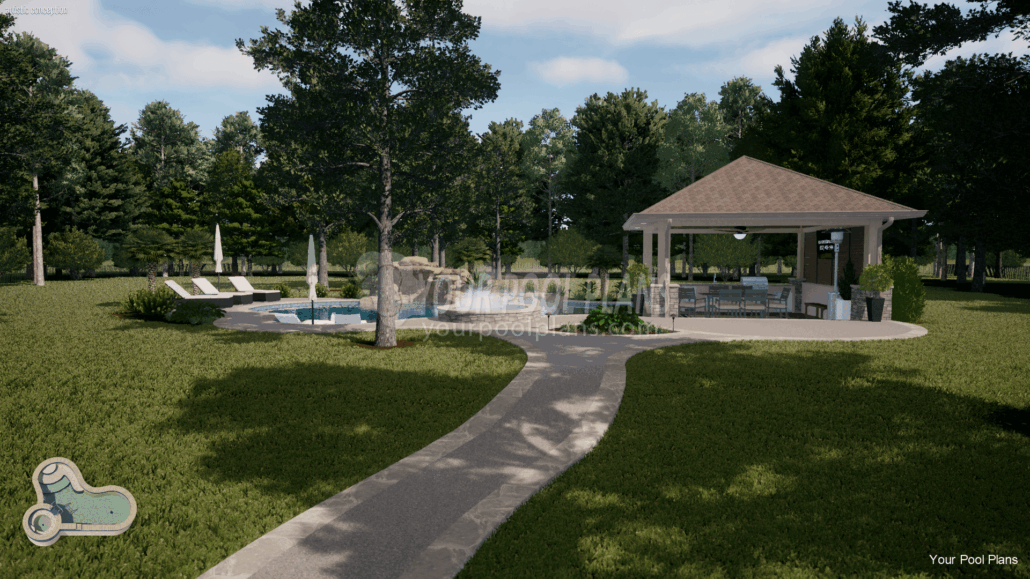

This Arkansas pool design plan is combined with a covered outdoor kitchen area where one side meets the pool wall with a wet bar and also includes a 4 ft tall grotto with waterfalls flanking and trailing to one side. It includes a raised spa adjacent to a shallow sun ledge bathing area with 2 cascade bubblers.
Pool Design Details
Pool Type: Gunite
Pool Style: Free form, Natural, Lagoon
Spa: Yes, separated with dam wall spillover
Spa Height: Raised 12″
Spa Spillway: Dam wall
Pool Length: 43′
Pool Width: 23′
Pool Wall: No raised walls or beams
Depth Profile: Slope to middle, sport bottom depth
Min Pool Depth: 3.5′
Max Pool Depth: 5′
Perimeter: 127′
Surface area: 850 sqft
Capacity: 21,991 gallons
Decking max sqft: 1,067 sqft
How many lights: 3
Sun ledge: Yes, bathing ledge in 7″ of water with 2 cascade bubblers
Other Water features: Grotto roughly 4′ tall, around 8 tons of natural rock
Brand of equipment: Pentair
Type of sanitation: Chlorine, Salt System
Include heater: Yes
Design Materials
Waterline tiles: 6×6 Ceramic pool tile
Interior surface: Regular pebble light color plaster
Coping material: 2CM Natural Flagstone
Decking material: Brushed concrete or pea gravel concrete
Vertical Faces materials: Field stone matching the flagstone
In Arkansas a pool building permit is required for most in-ground pool installations, generally mandated at the local municipal or county level. Regulations often require a fence or safety barrier at least 48 inches high, with specific structural and electrical inspections needed. Licensed, specialized contractors are typically required for construction.
Here are a few things to keep in mind when building a pool in Arkansas:
- Pool plans Arkansas: In areas throughout Arkansas like Benton County, Pulaski County, or Washington County, a swimming pool permit is required, and all in-ground pools must be designed by a professional.
- Arkansas Pool Site Plan Requirements: A detailed site plan is generally necessary, including property line distances, equipment location (pump, filter, heater), and safety fences/gates.
- Arkansas Pool Safety Requirements: Ensure all plans include proper fencing and gate, and safety barrier requirements.
