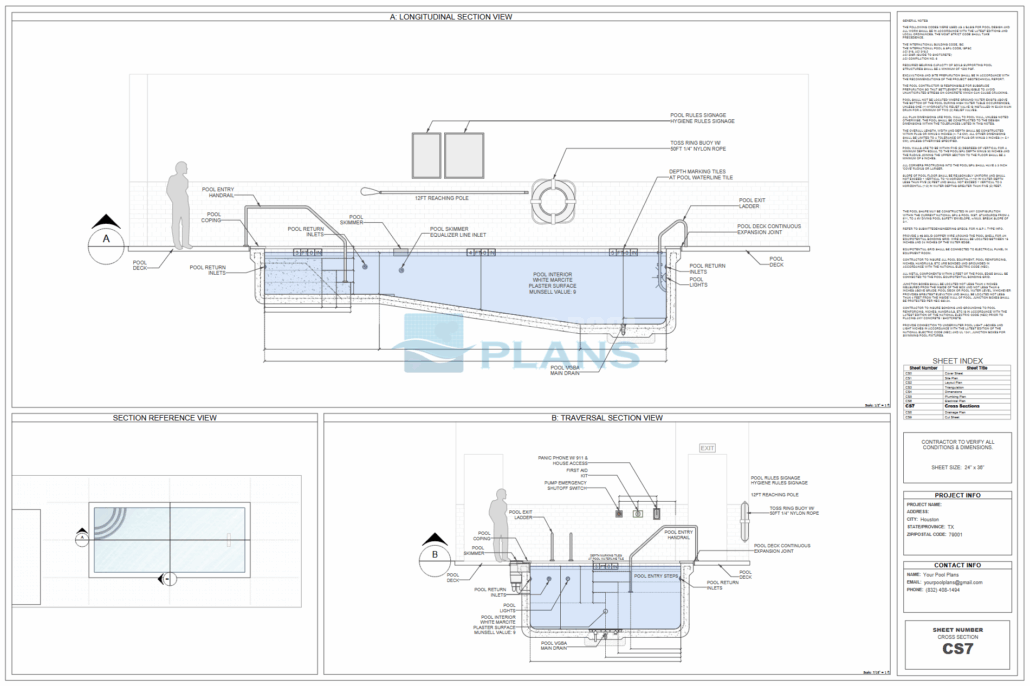

Cross section drawings of swimming pool showing structural detail and components as it pertains to the requirements of your building department.

If you require a cross section drawing for your swimming pool design this needs to be added to your pool construction plans order. Not all building departments require a cross section drawing for submitting pool plans, and that is why this is a separate service we offer if you need it. Please check with your building department to see if this is required or if you would just like to have it anyway.

Must be purchased with or previously purchased a pool construction plan set. If you have already purchased a construction plan set we can invoice you separately for the cost of this plan.

ATTENTION

Not included with a standard set of construction sheets.
*This cost can vary depending on the overall complexity of the design.
Must be purchased with or previously purchased a pool construction plan set.
